INCONEL® Alloy C-276

2.4819  /  UNS N10276

A nickel-chromium-molybdenum alloy with addition of tungsten for exceptional resistance in a wide range of aggressive corrosive media.  The combination of high nickel, molybdenum and chromium contents give excellent resistance to oxidising, non-oxidising and mixed acids while also having resistance to chloride induced crevice and pitting corrosion and stress corrosion cracking.  The alloy finds application in a wide range of processes from chemical processing, pulp and paper production, pollution control systems, waste treatment and for off-shore applications.

Stock program

Bars

  • 12.0 mm
  • 16.0 mm
  • 20.0 mm
  • 25.0 mm
  • 30.0 mm
  • 35.0 mm
  • 40.0 mm
  • 45.0 mm
  • 50.0 mm
  • 55.0 mm
  • 60.0 mm
  • 65.0 mm
  • 70.0 mm
  • 80.0 mm
  • 90.0 mm
  • 100.0 mm

Sheets / Plates

  • 0.5 mm
  • 0.6 mm
  • 3.0 mm
  • 4.0 mm

Tubes / Pipes

outside diameter x wall thickness

  • 13.70 mm
  • x
  • 2.24 mm
  • 21.34 mm
  • x
  • 2.77 mm
  • 26.67 mm
  • x
  • 2.87 mm
  • 33.40 mm
  • x
  • 1.65 mm
  • 33.40 mm
  • x
  • 2.77 mm
  • 33.40 mm
  • x
  • 3.38 mm
  • 42.16 mm
  • x
  • 3.56 mm
  • 48.26 mm
  • x
  • 2.77 mm
  • 48.26 mm
  • x
  • 3.68 mm
  • 60.32 mm
  • x
  • 2.77 mm
  • 60.32 mm
  • x
  • 3.91 mm
  • 73.02 mm
  • x
  • 3.08 mm
  • 88.90 mm
  • x
  • 3.05 mm
  • 88.90 mm
  • x
  • 5.49 mm
  • 88.90 mm
  • x
  • 7.62 mm
  • 114.30 mm
  • x
  • 3.05 mm
  • 114.30 mm
  • x
  • 6.02 mm
  • 114.30 mm
  • x
  • 8.56 mm
  • 168.30 mm
  • x
  • 7.11 mm
  • 219.10 mm
  • x
  • 3.76 mm
  • 219.10 mm
  • x
  • 8.18 mm

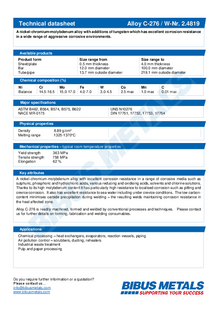

Downloads

Limiting
Ni   Balance
Mo   15.00 - 17.00 %
Cr   14.50 - 16.50 %
Fe   4.00 - 7.00 %
W   3.00 - 4.50 %
Co max. 2.50 %
Mn max. 1.00 %
V max. 0.35 %
Si max. 0.08 %
P max. 0.04 %
S max. 0.03 %
C max. 0.01 %
Density
g/cm³   8.89
lb/in³   0.321
Recommended Welding Products
Electrode INCO WELD 686 CPT
Filler Metal INCO WELD 686 CPT
